Concrete grinders, scarifiers, shot blasters and scabblers – these tools help contractors with the preparation of concrete surfaces. Whether it’s a repair job, new project, or decorative work, each machine has specific strengths that help professionals perform their jobs effectively. This article gives an overview of their capabilities, coverage rates, power options and benefits.

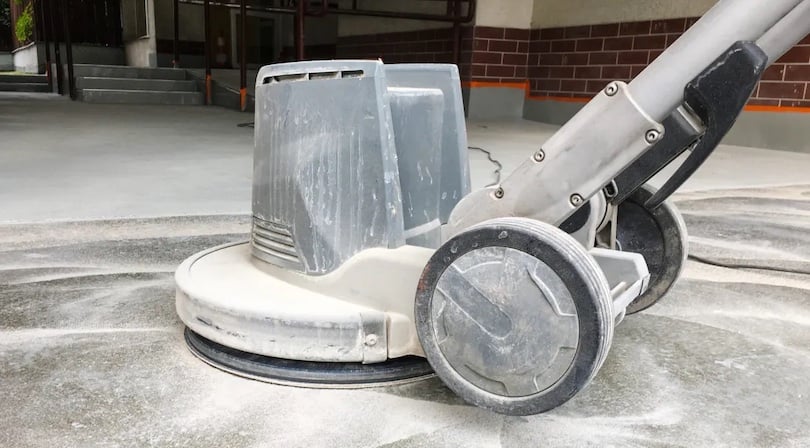

Concrete Grinders: The Basics
Concrete floor grinders can be powered by electric, gasoline and propane and are versatile enough to be used in wet or dry conditions. Grinders are most effective at removing thin coatings and paints or for cleaning and lightly abrading floor surfaces. They also break up deposits of grease, dirt and industrial contaminants, level uneven joints or high spots and polish concrete surfaces with finer-grit abrasives.
Diamond Tooling & Pads
To achieve grinding and polishing success, grinders use multiple types of tooling, pads or discs for a variety of tasks. These accessories are made from silicon-carbide-impregnated grinding stones, tungsten-carbide inserts or diamond-segmented grinding tools (attachments for removing thicker coatings and mastics are also available).
How Much Will a Concrete Grinder Remove?
Grinders use cutting discs that rotate (rather than impact) to remove material at a depth of about 1/8 inch.
Concrete Grinders vs. Scarifiers & Shotblasters
What’s the difference between shotblasters, scarifiers and grinders? The answer is in material removal and performance. Grinders typically leave behind a smoother profile than scarifying or shotblasting because they polish hard, dense concrete rather than abrading the surface.
Varying Grinder Types
Grinders are available as walk-behind models good for floor and slab surfaces that range in size from single-, dual- and four-disc machines ideal for smaller jobs, to heavy-duty planetary machines ideal for high-production grinding of large slabs.
Single-disc grinders have a working width of 10 to 12 inches, whereas dual-disc units cover 20 or more inches in one pass using counter-rotating discs to provide balanced torque so the grinder won’t pull from side to side.
Planetary units range in coverage of 11 to 36 inches, with individual speed and direction control of the planetary head/s and satellite discs, optimizing any grinding application.
Grinder Disc Rotation
Disc rotation speeds range from about 250 to over 3,000 rpm, with floating heads that follow the contour of the floor, adjustable rear wheels that keep grinding discs level and vacuum ports which allow for dust-free, dry grinding.
Hand-held Grinders
Grinders are also available as hand-held models, good for working in tight areas where larger units can’t maneuver, such as in corners and close to walls. Grinding diameters for hand grinders range from 5 to 12 inches and can also be used to remove bumps, form marks, and graffiti from vertical surfaces or to grind concrete countertops.
Maintenance
Grinders come with a selection of grinding accessories and can be hooked up to an industrial vacuum for dust control. Not to mention, they are very adaptable for decorative work, as well as surface prep – profiling floors before application of thin coatings or paints because they won’t create ridges in the surface, as can scarifiers.
Concrete Scarifiers: The Basics
Scarifiers, also refered to as surface planers or milling machines, remove concrete faster and more aggressively than grinders. Scarifiers can be powered by electric, gasoline and propane. They use the pummeling action of multi-tipped, interchangeable cutting wheels called flails that rotate at high speeds to chip away at the concrete surface.
Scarifiers are designed to leave behind a rough finish and may create ridges in the concrete. However, they can remove heavy floor tile mastics, rubbery elastomeric and epoxy materials, as well as perform light or heavy milling.
Scarifier Cutting Wheels
The cutters, which perform the abrasive work in these machines, are made of tungsten carbide or hardened steel. When considering tungsten or steel cutters, here are a few things you should know:
- Tungsten carbide cutters are more aggressive and longer lasting, making them practical for jobs requiring high production rates or scarifying of high-psi concrete
- Steel cutters are less expensive and have a shorter lifespan
Either type of cutter is available in different diameters, widths, number of cutting teeth and grades. Tip styles include blunt or flat for aggressive removal, sharp for gentler scarifying action or angled for scraping.
Scarifiers are available as small hand-held units with 2- to 3-inch cutting widths. They are also available as a manual push or self-propelled walk-behind machines with working paths of 4 to 16 inches.
Production Rates & Performance
Production rates range from 350 to 1,500 square feet per hour. Cutting depths are adjustable on most machines, with some models achieving up to 1/4 inch of material removal in one pass. Some models have self-leveling scarifying heads that automatically adjust to contours in the floor.
Other Information
Scarifiers can also groove walkways to make them slip resistant, remove trip hazards in sidewalks, level misaligned concrete joints and uneven surfaces and can achieve different finishes by adjusting the spacing and pattern of the cutter assemblies. The closer the cutters are spaced, the smoother the finish.
Vacuum attachments may also be added to collect dust and debris. In addition, scarifiers have cutting wheels mounted to shafts of a removable drum; quick-change drums allow for easy switch or replacement.
Shot Blasters: The Basics
Shot blasters use a one-step preparation method for stripping, cleaning and profiling surfaces for coatings and overlays. Shot blasters produce a roughened texture that improves adhesion of decorative toppings, as well as leave surfaces dry and immediately ready for recoating or resurfacing. Shot blasters can be powered by electric, diesel and gasoline.
How They Work
Shot blasters use high velocity centrifugal force of a wheel with paddle-type blades to propel steel shot at the surface, fracturing off the surface layer of the concrete as well as any dirt, coatings, paint or other contaminants.
Shot blasters also use an enclosed blast chamber that separates dust and debris from the spent steel shot, and recovers the reusable abrasive for recirculation. Shot blasters remove materials at a depth determined by the size and concentration of the shot, the rate of machine travel, shot impact force and condition of the surface.
Different Types of Shot Blasters
Shot blasters are available as manual or self-propelled walk-behind units, with blasting paths range from 4 to 32 inches. Removal rates range from about 200 to over 3,000 square feet per hour. Smaller steel shot provides better coverage and higher production rates and smaller models are good for working in tight areas, around equipment and obstructions, next to walls or residential garage floors and balconies for decorative coatings.
Shot blasters are used for surface preparation such as very light etching to more aggressive removal of surface mortar down to coarse aggregate. They provide a cost-effective way to remove dirt, grime and chemical contaminants from large areas and for prepping substrates for self-leveling or polymer overlays, epoxy toppings and most coatings. Shot blasters produce very little airborne dust or debris, good for work areas such as food preparation facilities or manufacturing plants.
Tips for Shot Blasting
Shot blasters are affected by the hardness of the concrete or existing coating with regard to production rate and the depth of material removal. However, you’ll need multiple passes to remove thick coatings, rubbery mastics or heavy elastomeric coatings and are less effective than a scarifier. Shot blasters can leave “cornrows” where successive passes overlap, which can stay visible under a clear surface coating.
Concrete Scabblers: The Basics
Concrete scabblers are designed to roughen concrete surfaces more effectively than a grinder or scarifier. They use compressed air to hammer piston-mounted tungsten carbide bits into the concrete surface, up to 1,200 hits per minute.
Scabblers have tungsten carbide bits that can last about 50 hours, and can be powered by air, electric and gas. Scabblers require vacuum ports for dust-free operation, as well as an automatic in-line lubricator or oiler for low piston maintenance.
Concrete Removal
Scabblers remove up to a 1/4 inch of concrete in a single pass, depending on the strength of the concrete. Typically it takes several passes to achieve a desired depth, but scabblers remove up to 200 square feet per hour at Depth Per Pass of 3/16”. Scabblers scabble down high spots in concrete, create excellent surface texture for bonding overlays and level uneven joints.
Other Applications
Scabblers are also effective in creating wheelchair access ramps, repairing sidewalk trip hazards, creating slip resistant surfaces, removing delaminated, spalled or deteriorated concrete and breaking up ceramic tile.
