Description
Whether you’re working in tight spaces or tackling maintenance projects, the SBMini provides the precision and efficiency that larger systems often can’t.
- Finish jobs faster than manual application
- Reduce crew size from 3–4 down to 1–2 operators
- Ensure consistent 1:1 mixing
- Return floors to service in 30 minutes

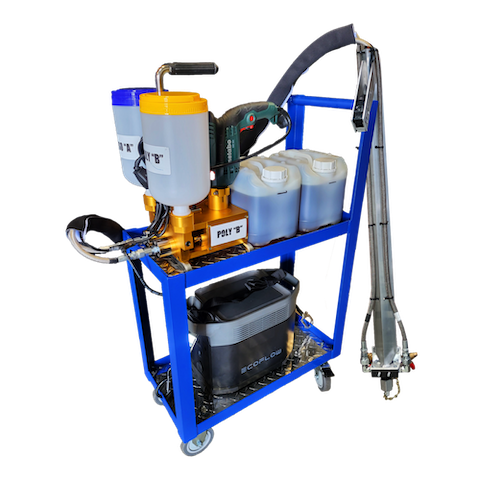

HTS JOINT FILL PUMP FEATURES
- 1:1 Ratio Ultra Portable Polyurea Pump
- 1/2 Gallon Tanks for 1 Gallon Total Capacity
- Momentary On/Off Button
- HTS Manifold with Cleanout Valves
- Simple Cleanup and Maintenance
- Can be used with Optional Hi-Tech Portable Power Cart
- Pump Weight: 27 lbs (91 lbs with Optional Cart and Power System)
KEY ADVANTAGES
The SBMini takes joint filling from a time-consuming process into an efficient operation.
- Potential Labor Savings: Can reduce typical 3–4 person crews to 1–2 operators, depending on project size and finishing needs
- Consistency: 1:1 mixing eliminates waste and callbacks
- Versatility: Works in a variety of areas, including warehouses, retail spaces, cold storage, and industrial facilities
APPLICATIONS
- Commercial warehouse floors
- Retail showrooms and big box stores
- Food processing facilities
- Parking structures and industrial facilities
- Control joint filling and expansion joint sealing
TECHNICAL SPECIFICATIONS
- Flow Rate: 0.2-0.8 GPM (adjustable)
- Maximum Viscosity: 4,000 cps
- Mixing Ratio: 1:1 (standard), 2:1 optional
- Operating Pressure: Up to 200 PSI
- Hose Length: 25 feet standard
- Power Draw: 5 amps @ 110V
- Warranty: 2 years parts and labor
FAQs
Q: How does this compare to larger cart-based pumps?
A: While larger pumps have higher capacity, the SBMini offers portability and precision for jobs under 5,000 linear feet. It’s perfect for maintenance work, smaller projects, or areas where larger equipment can’t access.
Q: Is there a learning curve?
A: Most operators feel comfortable within 30 minutes. The simple momentary on/off operation and lightweight design make it intuitive to use.
Q: What maintenance is required?
A: The HTS manifold with cleanout valves makes maintenance simple. Flush with solvent after each use, which takes about 5 minutes.
